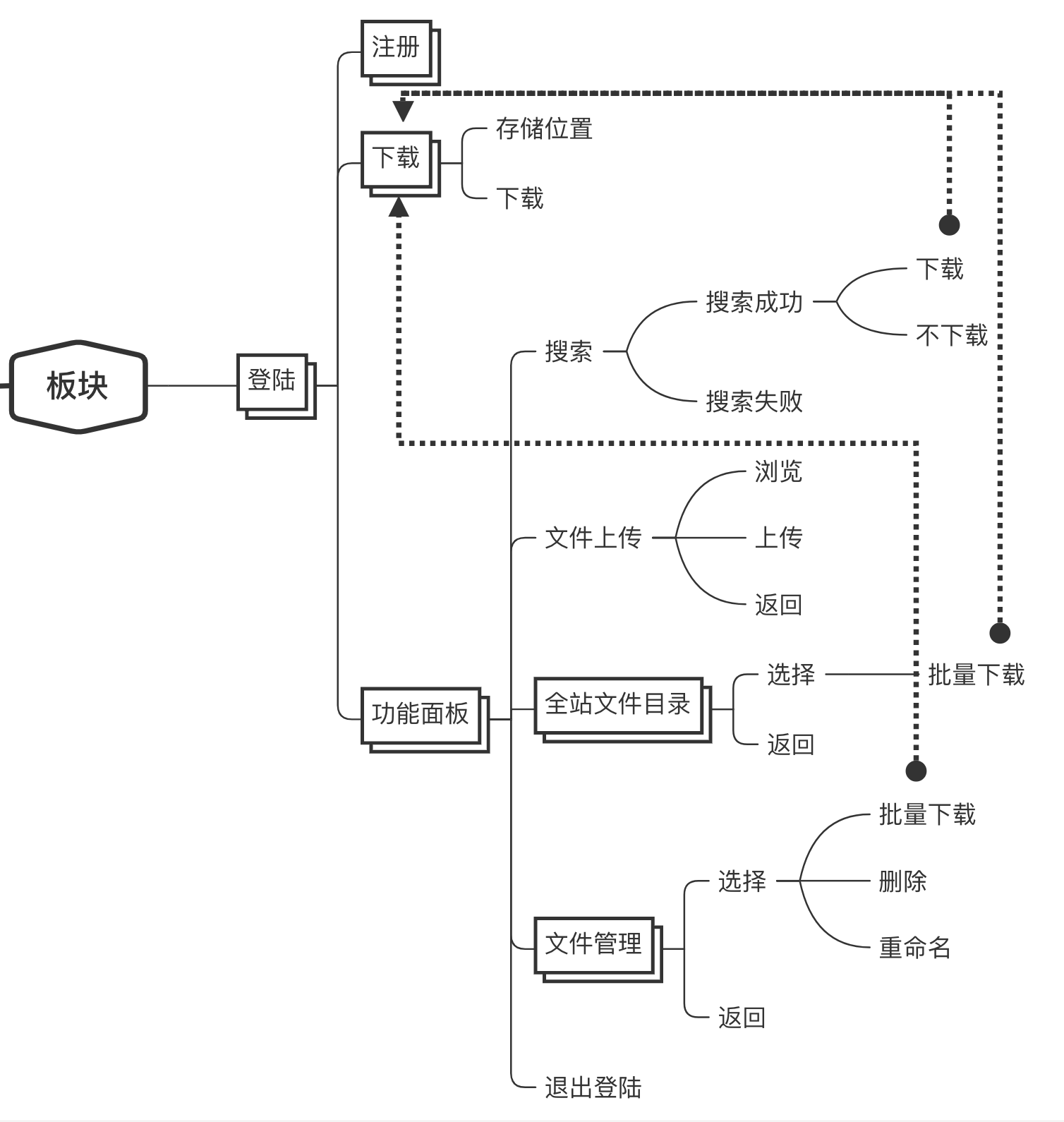

设计过程：

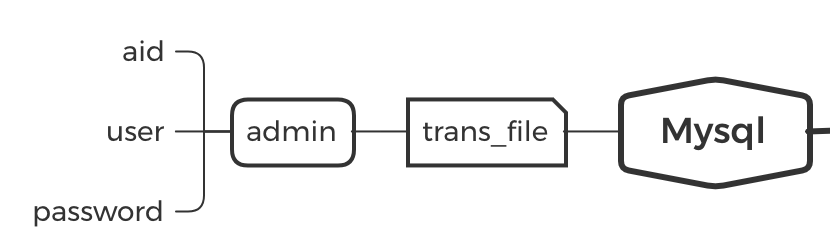

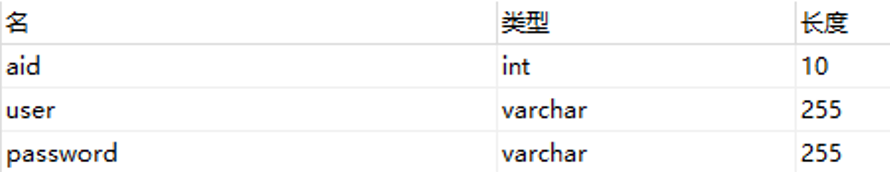

此篇主要是面板设计，与后端及server的互动不多，所以数据库设计并不完整
下篇会将所有C/S互动补充完整
C:\Program Files 即可点击查看大图
import java.awt.Font;
import java.awt.Image;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JOptionPane;
import javax.swing.JPasswordField;
import javax.swing.JTextField;
public class admin extends JFrame{
private int count=0;
private JButton bt1;//登陆按钮
private JButton bt2;//注册按钮
private JLabel jl_1;//登录的版面
private JFrame jf_1;//登陆的框架
private JTextField jtext1;//用户名
private JPasswordField jtext2;//密码
private JLabel jl_admin;
private JLabel jl_password;
public admin (String a,String b){//初始化登陆界面
Font font =new Font("黑体", Font.PLAIN, 15);//设置字体
jf_1=new JFrame("登陆界面");
jf_1.setSize(400, 320);
//给登陆界面添加背景图片
ImageIcon bgim = new ImageIcon(admin.class.getResource("back.png")) ;//背景图案
bgim.setImage(bgim.getImage().
getScaledInstance(bgim.getIconWidth(),
bgim.getIconHeight(),
Image.SCALE_DEFAULT));
jl_1=new JLabel();
jl_1.setIcon(bgim);
jl_admin=new JLabel("用户名");
jl_admin.setBounds(20, 50, 60, 50);
jl_admin.setFont(font);
jl_password=new JLabel("密 码");
jl_password.setBounds(20, 120, 60, 50);
jl_password.setFont(font);
bt1=new JButton("登陆"); //更改成loginButton
bt1.setBounds(70, 210, 100, 50);
bt1.setFont(font);
bt2=new JButton("注册");
bt2.setBounds(230, 210, 100, 50);
bt2.setFont(font);
//加入文本框
jtext1=new JTextField(a);
jtext1.setBounds(110, 50, 250, 40);
jtext1.setFont(font);
jtext2=new JPasswordField(b);//密码输入框
jtext2.setEchoChar('*');//设置密文显示
jtext2.setBounds(110, 120, 250, 40);
jtext2.setFont(font);
//元素加入面板
jl_1.add(jtext1);
jl_1.add(jtext2);
jl_1.add(jl_admin);
jl_1.add(jl_password);
jl_1.add(bt1);
jl_1.add(bt2);
jf_1.add(jl_1);
jf_1.setVisible(true);
jf_1.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
jf_1.setLocation(300,200);
//登陆点击事件
ActionListener bt1_ls=new ActionListener() {
@Override
public void actionPerformed(ActionEvent arg0) {
String admin=jtext1.getText();
char[] password=jtext2.getPassword();
String str=String.valueOf(password); //将char数组转化为string类型
//判断用户名和密码
if(admin.equals("Uling")&&str.equals("22dd66cc")){
System.out.println(admin);
System.out.println(str);
new mainLayout(admin);//跳转界面
jf_1.dispose();//销毁当前界面
}
else {
count++;
System.out.println("error");
JOptionPane.showMessageDialog(null, "登录失败");
if(count==3){//密码输入错三次直接退出
JOptionPane.showMessageDialog(null, "即将退出，再见");
jf_1.dispose();
}
}
}
};
bt1.addActionListener(bt1_ls);
bt2.addActionListener(new ActionListener(){//对注册按钮添加监听事件
@Override
public void actionPerformed(ActionEvent arg0) {
new register();//进入都到注册窗体中
jf_1.dispose();
}
});
}
public static void main(String[] args) {
//初始化登陆界面
new admin("Uling","22dd66cc");
}
}
其他面板详细举例见《P2P:局域网内文件传输【带界面】》
public class Down extends JFrame{
public Down(){
JFrame jf=new JFrame();
jf.setTitle("下载界面");
jf.setLayout(null);
jf.setSize(400,300);
jf.setLocation(500,200);
jf.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);//关闭选项
JPanel fun = new Fun(jf);
fun.setBounds(20,10,360,200);
fun.setBorder(BorderFactory.createTitledBorder(""));
jf.add(fun);
jf.setVisible(true);
}
public static void main(String[] args) {
new Down();
}
}
class Fun extends JPanel implements ActionListener {
JButton download;
Timer timer;
JProgressBar jpb;
JFrame jf;
public Fun(JFrame jf) {
this.jf=jf;
this.setLayout(null);
setSize(360, 200);//设置宽、高
timer = new Timer(50, this); // 创建一个计时器，计时间隔为50毫秒
download=new JButton("开始下载");
download.setBounds(20,115,100,30);
jpb = new JProgressBar();
jpb.setOrientation(JProgressBar.HORIZONTAL);//设置进度条的方向：平行
jpb.setMinimum(0);//最小值为0
jpb.setMaximum(100);//最大值为100
jpb.setValue(0);//赋初始值
jpb.setStringPainted(true);//true：进度条呈现进度字符串
jpb.setBounds(130,120,200,20);
this.add(download);
this.add(jpb);
download.addActionListener(this);
}
@Override
public void actionPerformed(ActionEvent e) {
if (e.getSource() == timer) {//监听到有动作发生的某个控件（定时器）
int value = jpb.getValue();//返回进度条的当前值
jpb.setValue(0);//将进度条回复0值
if (value < 100) {//若当前进度未满
value++;//自加
jpb.setValue(value);//将进度条重新赋值
} else {
timer.stop();//进度条已满则停止Timer，使它停止向其监听器发送动作事件
}
}
else if ((JButton) e.getSource() == download){//文件下载
download.setEnabled(false);
if(path==null){//错误提示
JOptionPane.showMessageDialog(null, "未选择保存路径","错误",JOptionPane.ERROR_MESSAGE);
download.setEnabled(true);
}
else{
try {
timer.start();
/*下载开始。。。操作*/
}
}catch (IOException q) {
System.out.println("异常");
download.setEnabled(true);
}
}
}
}
}
public class Up extends JFrame{
public Up(){
JFrame jf=new JFrame();
jf.setTitle("Up");
jf.setLayout(null);
jf.setSize(400,300);
jf.setLocation(500,200);
jf.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);//关闭选项
JPanel fun = new Fun(jf);
fun.setBounds(20,10,360,200);
fun.setBorder(BorderFactory.createTitledBorder(""));
jf.add(fun);
jf.setVisible(true);
}
public static void main(String[] args) {
new Up();
}
}
class Fun extends JPanel implements ActionListener {
JFileChooser jfc;//文件选择窗口
JTextField file_path;
JButton look;
JFrame jf;
String path,name;
public Fun(JFrame jf) {
this.jf=jf;
this.setLayout(null);
setSize(360, 200);//设置宽、高
jfc = new JFileChooser();
file_path=new JTextField("待发送文件:");
file_path.setBounds(40,60,200,30);
look= new JButton("浏览");
look.setBounds(240,60,80,30);
this.add(download_path);
this.add(file_path);
this.add(look);
look.addActionListener(this);
}
@Override
public void actionPerformed(ActionEvent e) {
int result;
if ((JButton) e.getSource() == look){//浏览按钮被按下
jfc.setApproveButtonText("确定");//文件选择窗口中的 approvebutton 内使用的文本
jfc.setDialogTitle("选择文件窗口");//文件选择窗口中的标题栏
result = jfc.showOpenDialog(this);
//null———显示在当前电脑显示器屏幕的中央
//this———显示在当前你编写的程序屏幕中央
//返回一个DialogResult，对应你按的按钮【如：单击“关闭”按钮会隐藏窗体，并将DialogResult属性设置为DialogResult.Cancel 】
if (result == JFileChooser.APPROVE_OPTION) // 当用户按下文件选择窗口中的确定
{
path = new String(jfc.getSelectedFile().getPath());//文件路径
//getSelectedFile()返回选中的文件
//getPath()将此抽象路径名转换为一个路径名字符串
name= new String(jfc.getSelectedFile().getName());//文件名
file_path.setText("文件:" + name + "待上传！");
}
}
}
}
public class Down extends JFrame{
public Down(){
JFrame jf=new JFrame();
jf.setTitle("Down");
jf.setLayout(null);
jf.setSize(400,300);
jf.setLocation(500,200);
jf.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);//关闭选项
JPanel fun = new Fun(jf);
fun.setBounds(20,10,360,200);
fun.setBorder(BorderFactory.createTitledBorder(""));
jf.add(fun);
jf.setVisible(true);
}
public static void main(String[] args) {
new Down();
}
}
class Fun extends JPanel implements ActionListener {
JFileChooser jfc;//文件选择窗口
JLabel download_path;
JTextField file_path;
JButton look;
File dir;
String url="127.0.0.1";
JFrame jf;
public Fun(JFrame jf) {
this.jf=jf;
this.setLayout(null);
setSize(360, 200);//设置宽、高
jfc = new JFileChooser();
download_path=new JLabel("下载路径:");
download_path.setBounds(20, 20, 60, 30);
file_path=new JTextField("文件存储位置");
file_path.setBounds(40,60,200,30);
look= new JButton("浏览");
look.setBounds(240,60,80,30);
this.add(download_path);
this.add(file_path);
this.add(look);
look.addActionListener(this);
}
@Override
public void actionPerformed(ActionEvent e) {
File path=null;
if ((JButton) e.getSource() == look){//选择文件后显示状态实时更新为对应的选择路径
jfc.setFileSelectionMode(JFileChooser.FILES_AND_DIRECTORIES );
jfc.showDialog(new JLabel(), "选择");
path=jfc.getSelectedFile();
if(path.isDirectory()){
file_path.setText(path.getPath());//显示文件路径
dir = new File(path.getPath());
}else if(path.isFile()){
JOptionPane.showMessageDialog(null, "所选保存路径不正确","警告",JOptionPane.WARNING_MESSAGE);
}
}
}
}
public class AllContent extends JPanel implements ItemListener {
//哈希map动态保存多选框和对应文字
private HashMap<JCheckBox, String> map = new HashMap<>();
static List<String> content = new ArrayList<>();
private static File file = new File("AllConten.txt");
private static void GetContent() {
try {
if (!file.isFile()) {
file.createNewFile();
}
/** 连接server，请求全部文件目录写入AllContent.txt中 */
} catch (Exception e) {
System.out.println("文件异常");
}
}
public AllContent() {
JCheckBox checkBox;//多选框
JPanel checkPanel = new JPanel(new GridLayout(0, 1));//文件目录部分
try {
//读取保存文件目录的文件
BufferedReader br = new BufferedReader(new FileReader(file));
String line = null;
int i = 0;
/*逐行读取——一行一个文件名
生成多选框及对应文字
集合存入map*/
while ((line = br.readLine()) != null) {
StringBuilder sb = new StringBuilder();
String a = line;
sb.append(a);
checkBox = new JCheckBox(sb.toString());
checkBox.setName("CheckBox" + i);
checkBox.addItemListener(this);
map.put(checkBox, a);
checkPanel.add(checkBox);
i++;
}
br.close();
} catch (FileNotFoundException e) {
System.out.println("文件异常");
}catch (IOException e) {
System.out.println("读取异常");
}
add(checkPanel);//文件目录部分加入面板
}
//反应多选框的选中状态
public void itemStateChanged(ItemEvent e) {
JCheckBox source = (JCheckBox) e.getItemSelectable();
if (e.getStateChange() == ItemEvent.SELECTED) {//选中
String list = map.get(source);
content.add(list);//文件名加入列表
}
if (e.getStateChange() == ItemEvent.DESELECTED) {//未选中
String list = map.get(source);
Iterator<String> iterator = content.iterator();
while (iterator.hasNext()) {//从列表中删除文件名
String s = iterator.next();
if (s.equals(list)) {
iterator.remove();
}
}
}
}
private static void Initial() {
GetContent();
JFrame jf = new JFrame("文件列表");
jf.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
jf.setLayout(null);
jf.setSize(300, 350);
jf.setLocation(200, 200);
JComponent newContentPane = new AllContent();
newContentPane.setBorder(BorderFactory.createTitledBorder("目录"));
newContentPane.setOpaque(true);
JScrollPane scroll = new JScrollPane(newContentPane);
scroll.setVerticalScrollBarPolicy(JScrollPane.VERTICAL_SCROLLBAR_ALWAYS);// 垂直滚动
scroll.setBounds(20, 50, 250, 240);
jf.getContentPane().add(scroll);
jf.setVisible(true);
}
public static void main(String[] args) {
javax.swing.SwingUtilities.invokeLater(new Runnable() {
public void run() {
Initial();
}
});
}
}
private static void Initial() {
GetContent();
JFrame jf = new JFrame("文件列表");
jf.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
jf.setLayout(null);
jf.setSize(300, 350);
jf.setLocation(200, 200);
JComponent newContentPane = new AllContent();//组件
newContentPane.setBorder(BorderFactory.createTitledBorder("目录"));//外框
newContentPane.setOpaque(true);//设置控件是否透明的：true表示不透明,false表示透明
JScrollPane scroll = new JScrollPane(newContentPane);//滚动条所属组件
scroll.setVerticalScrollBarPolicy(JScrollPane.VERTICAL_SCROLLBAR_ALWAYS);// 垂直滚动
scroll.setBounds(20, 50, 250, 240);//滚动条基本大小范围
jf.getContentPane().add(scroll);
jf.setVisible(true);
}
将数据传输部分的数据改成控制台输入即可进行轮询，与server形成会话，而不是一次性操作
public class C_Register {
public static boolean register(String M) {
try {
//初始化客户端
SocketChannel socket = SocketChannel.open();
socket.configureBlocking(false);
Selector selector = Selector.open();
//注册连接事件
socket.register(selector, SelectionKey.OP_CONNECT);
//发起连接
socket.connect(new InetSocketAddress("127.0.0.1", 555));
//开启数据输入监听
new ChatThread(M,selector, socket).start();
Calendar ca = Calendar.getInstance();
//轮询处理
while (true) {
if (socket.isOpen()) {
//在注册的键中选择已准备就绪的事件
selector.select();
//已选择键集
Set<SelectionKey> keys = selector.selectedKeys();
Iterator<SelectionKey> iterator = keys.iterator();
//处理准备就绪的事件
while (iterator.hasNext()) {
SelectionKey key = iterator.next();
//删除当前键，避免重复消费
iterator.remove();
//连接
if (key.isConnectable()) {
//在非阻塞模式下connect也是非阻塞的，所以要确保连接已经建立完成
while (!socket.finishConnect()) {
System.out.println("连接中");
}
socket.register(selector, SelectionKey.OP_READ);
}
//监听到数据传人，注册OP_WRITE,然后将消息附在attachment中
if (key.isWritable()) {
//发送消息给服务端
socket.write((ByteBuffer) key.attachment());
/*
已处理完此次输入，但OP_WRITE只要当前通道输出方向没有被占用
就会准备就绪，select()不会阻塞（但我们需要控制台触发,在没有输入时
select()需要阻塞），因此改为监听OP_READ事件，该事件只有在socket
有输入时select()才会返回。
*/
socket.register(selector, SelectionKey.OP_READ);
System.out.println("==============" + ca.getTime() + " ==============");
}
//处理输入事件
if (key.isReadable()) {
ByteBuffer byteBuffer = ByteBuffer.allocate(1024 * 4);
int len = 0;
//捕获异常，因为在服务端关闭后会发送FIN报文，会触发read事件，但连接已关闭,此时read()会产生异常
try {
if ((len = socket.read(byteBuffer)) > 0) {
System.out.println("the message from server:\t");
String receive=new String(byteBuffer.array(), 0, len);
System.out.println(receive);
if(receive.equals("ACK")){
return true;
}
else if(receive.equals("ERRO")){
return false;
}
}
} catch (IOException e) {
System.out.println("ERRO! closing client.........");
key.cancel();
socket.close();
}
System.out.println("=========================================================");
}
}
} else {
break;
}
}
} catch (IOException e) {
System.out.println("客户端异常，请重启！");
}
return true;
}
public static void main(String[] args) {
boolean re=register("register:CG:22dd66cc");
}
}

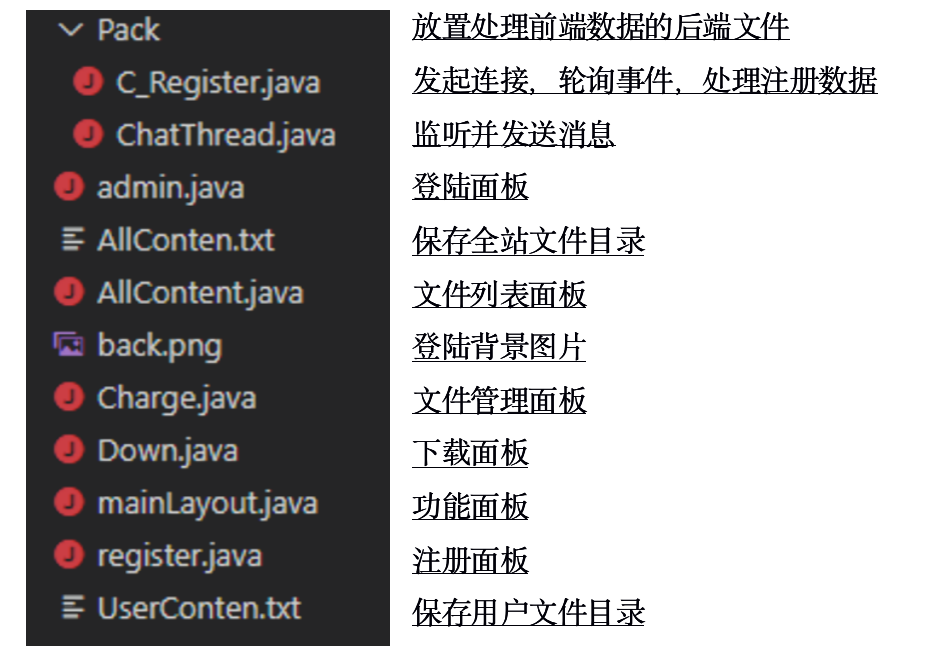

public class ChatThread extends Thread {
private Selector selector;
private SocketChannel socket;
private String M;
public ChatThread(String M,Selector selector, SocketChannel socket) {
super();
this.selector = selector;
this.socket = socket;
this.M=M;
}
@Override
public void run() {
try {
//等待连接建立
Thread.sleep(500);
} catch (InterruptedException e) {
e.printStackTrace();
}
//Scanner scanner = new Scanner(System.in);
//System.out.println("请输入您要发送给服务端的消息");
//while (scanner.hasNextLine()) {
String s = M;//scanner.nextLine();
try {
//用户已输入，注册写事件，将输入的消息发送给客户端
socket.register(selector, SelectionKey.OP_WRITE, ByteBuffer.wrap(s.getBytes()));
//唤醒之前因为监听OP_READ而阻塞的select()
selector.wakeup();
} catch (ClosedChannelException e) {
e.printStackTrace();
}
//}
}
}

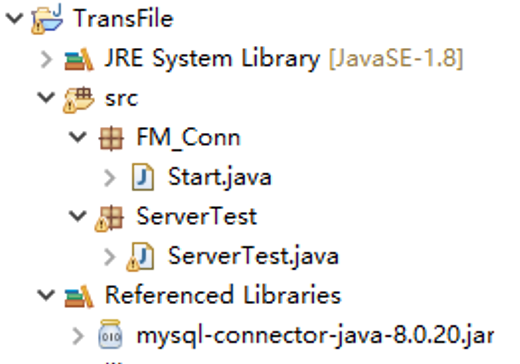

public class Start {
private static String url="jdbc:mysql://localhost:3306/trans_file?useUnicode=true&characterEncoding=UTF-8&userSSL=false&serverTimezone=GMT%2B8";//定位数据库
private static String user="root";//用户名
private static String password="22dd66cc";//密码
private static String driver="com.mysql.cj.jdbc.Driver";//jar包驱动
public Connection getCon() throws Exception{
Class.forName(driver);//加载驱动
Connection con=DriverManager.getConnection(url, user, password);//连接数据库
return con;
}
public void close(Connection con) throws Exception{
if(con!=null){
con.close();
}
}
}
public class ServerTest {
public static void main(String[] args) throws Exception {
Start db=new Start();
Connection conn=db.getCon();
try {
//服务初始化
ServerSocketChannel serverSocket = ServerSocketChannel.open();
//设置为非阻塞
serverSocket.configureBlocking(false);
ServerSocket ss=serverSocket.socket();
//绑定端口
InetSocketAddress addr=new InetSocketAddress(555);
ss.bind(addr);
//serverSocket.bind(new InetSocketAddress("localhost", 443));
//注册OP_ACCEPT事件（即监听该事件，如果有客户端发来连接请求，则该键在select()后被选中）
Selector selector = Selector.open();
serverSocket.register(selector, SelectionKey.OP_ACCEPT);
Calendar ca = Calendar.getInstance();
System.out.println("服务端开启了");
System.out.println("=========================================================");
//轮询服务
while (true) {
//选择准备好的事件
selector.select();
//已选择的键集
Iterator<SelectionKey> it = selector.selectedKeys().iterator();
//处理已选择键集事件
while (it.hasNext()) {
SelectionKey key = it.next();
//处理掉后将键移除，避免重复消费(因为下次选择后，还在已选择键集中)
it.remove();
//处理连接请求
if (key.isAcceptable()) {
//处理请求
SocketChannel socket = serverSocket.accept();
socket.configureBlocking(false);
//注册read，监听客户端发送的消息
socket.register(selector, SelectionKey.OP_READ);
//keys为所有键，除掉serverSocket注册的键就是已连接socketChannel的数量
String message = "connect successful, your number is " + (selector.keys().size() - 1);
//向客户端发送消息
socket.write(ByteBuffer.wrap(message.getBytes()));
InetSocketAddress address = (InetSocketAddress) socket.getRemoteAddress();
//输出客户端地址
System.out.println(ca.getTime() + "\t" + address.getHostString() +
":" + address.getPort() + "\t");
System.out.println("客戶端已连接");
System.out.println("=========================================================");
}
if (key.isReadable()) {
SocketChannel socket = (SocketChannel) key.channel();
InetSocketAddress address = (InetSocketAddress) socket.getRemoteAddress();
System.out.println(ca.getTime() + "\t" + address.getHostString() +
":" + address.getPort() + "\t");
ByteBuffer bf = ByteBuffer.allocate(1024 * 4);
int len = 0;
byte[] res = new byte[1024 * 4];
//捕获异常，因为在客户端关闭后会发送FIN报文，会触发read事件，但连接已关闭,此时read()会产生异常
try {
while ((len = socket.read(bf)) != 0) {
bf.flip();
bf.get(res, 0, len);
String message = new String(res, 0, len);
//注册，客户端发来的语句为=》register:name:password
if(message.contains("register")){/** 其他操作可类似*/
String[] strArr = message.split(":");
String user=strArr[1];
String password=strArr[2];
Statement stmt=conn.createStatement();
String sql="insert into admin values(null,'"+user+"','"+password+"')";
System.out.println(sql);
stmt.executeUpdate(sql);
//向客户端发送消息
socket.write(ByteBuffer.wrap("ACK".getBytes()));
}
System.out.println(message);
bf.clear();
}
System.out.println("=========================================================");
} catch (IOException e) {
//客户端关闭了
key.cancel();
socket.close();
System.out.println("客戶端已断开");
System.out.println("=========================================================");
}catch (SQLException e) {
//向客户端发送消息
socket.write(ByteBuffer.wrap("ERRO".getBytes()));
}
}
}
}
} catch (IOException e) {
e.printStackTrace();
System.out.println("服务器异常，即将关闭..........");
System.out.println("=========================================================");
}
}
}
基于NIO的Socket通信(使用Java NIO的综合示例讲解)
PS：还差server与client的互动没有完成等完成了再分享
